The RS/6000* family of workstations and servers offers a broad range of powerful, scalable computing solutions. Operating system support is provided by AIX*, best rated UNIX** operating system by noted industry consultant D. H. Brown. Many thousands of applications are available spanning commercial and technical needs.
(For IBM US, No Longer Available as of January 10, 1997)

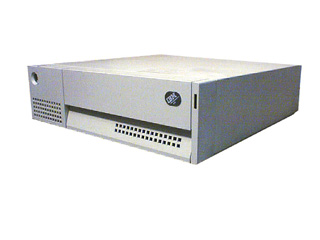

The RS/6000 graphics workstation is a desktop system that is binary compatible with the RS/6000 family. The 7006 workstations support a wide range of graphics configurations enabling you to select the level of graphics performance you need - from entry-level 2D business graphics to advanced 3D technical applications.
The Model 41T graphics workstation has an 80MHz PowerPC 601 microprocessor, 16MB memory (expandable to 256MB), POWER GXT150L graphics adapter, 540MB SCSI-2 disk drive, keyboard, mouse and a P70 Color Monitor. The P70 Color Monitor has a maximum viewable image size of 15.9 inches/403mm measured diagonally. The Ultimedia Audio Adapter with its cost-effective, 16-bit audio capability may also be included at no additional charge if selected at time of workstation order.
(For IBM US, No Longer Available as of July 18, 1997)
The RS/6000 graphics workstation is a desktop system that is binary compatible with the RS/6000 family. The 7006 workstations support a wide range of graphics configurations enabling you to select the level of graphics performance you need - from entry-level 2D business graphics to advanced 3D technical applications.
The Model 41W graphics workstation has an 80MHz PowerPC 601* microprocessor, 16MB memory (expandable to 256MB), POWER GXT150L graphics adapter, 540MB SCSI-2 disk drive, keyboard and mouse. The Model 41W comes without a standard monitor so you have the option of using existing monitors.
(For IBM US, No Longer Available as of September 24, 1997)
The RS/6000 graphics workstation is a desktop system that is binary compatible with the RS/6000 family. The 7006 workstations support a wide range of graphics configurations enabling you to select the level of graphics performance you need - from entry-level 2D business graphics to advanced 3D technical applications.
The Model 42T graphics workstation has a 120MHz PowerPC 604 microprocessor, 16MB memory (expandable to 256MB), POWER GXT150L* graphics adapter, 1080MB SCSI-2 disk drive, keyboard, mouse and a P70 Color Monitor. The P70 Color Monitor has a maximum viewable image size of 15.9 inches/403mm measured diagonally. The Ultimedia* Audio Adapter with its cost-effective, 16-bit audio capability may also be included at no additional charge if selected at time of workstation order.
Effective April 18, 1997, this RS/6000 system will have a 1-2 user, full function AIX Version 4 package included at no additional charge.
(For IBM US, No Longer Available as of September 24, 1997)
The RS/6000 graphics workstation is a desktop system that is binary compatible with the RS/6000 family. The 7006 workstations support a wide range of graphics configurations enabling you to select the level of graphics performance you need - from entry-level 2D business graphics to advanced 3D technical applications.
The Model 42W graphics workstation has a 120MHz PowerPC 604* microprocessor, 16MB memory (expandable to 256MB), POWER GXT150L* graphics adapter, 1080MB SCSI-2 disk drive, keyboard and mouse. The Model 42W comes without a standard monitor so you have the option of using existing monitors.
Effective April 18, 1997, this RS/6000 system will have a 1-2 user, full function AIX Version 4 package included at no additional charge.
 | Combines fast processing and performance in a desktop workstation so your work can get done quickly and affordably. |
| Based on the 80MHz PowerPC 601 microprocessor. |
| Offers a wide range of graphics configurations so you can select the graphics performance that best suits your needs. |
| Optional L2 cache (0.5MB) helps increase system performance. |
| Supports AIX Version 4.1 or later and AIX Version 3.2.5. |
| Upgradable to the PowerPC 604* microprocessor (requires AIX Version 4). |
| Includes P70 Color Monitor. |
| Offers audio support capability with the Ultimedia Audio Adapter at no additional charge when selected at time of initial order. |
| Unparalleled IBM service and support. |
| Combines fast processing and performance in a desktop workstation so your work can get done quickly and affordably. |
| Based on the 80MHz PowerPC 601 microprocessor. |
| Offers a wide range of graphics configurations so you can select the graphics performance that best suits your needs. |
| Optional L2 cache (0.5MB) helps increase system performance. |
| Supports AIX Version 4.1 or later and AIX Version 3.2.5. |
| Upgradable to the PowerPC 604* microprocessor (requires AIX Version 4). |
| The Model 41W comes without a standard monitor so you can use existing monitors. |
| Unparalleled IBM service and support. |
| Combines fast processing and performance in a desktop workstation so your work can get done quickly and affordable |
| Delivers the power of the PowerPC 604 microprocessor |
| Offers a wide range of graphics configurations so you can select the graphics performance and function that best suits your needs |
| Optional L2 cache (0.5MB) helps increase performance |
| Includes P70 Color Monitor |
| Offers audio support capability with the Ultimedia Audio Adapter - at no additional charge when selected at time of initial order |
| Unparalleled IBM service and support |
| Combines fast processing and performance in a desktop workstation so your work can get done quickly and affordably |
| Delivers the power of the PowerPC 604 microprocessor |
| Offers a wide range of graphics configurations so you can select the graphics performance and function that best suits your needs |
| Optional L2 cache (0.5MB) helps increase system performance |
| The Model 42W comes without a standard monitor so you can use existing monitors |
| Unparalleled IBM service and support |
Model CPU Graphics Adapter Disk Drive Monitor ----- ----------- ---------------- --------------- --------------- 41T 80 MHz 601 POWER GXT150L 540 MB SCSI-2 P70 Color Monitor 41W 80 MHz 601 POWER GXT150L 540 MB SCSI-2 None 42T 120 MHz 604 POWER GXT150L 1080 MB SCSI-2 P70 Color Monitor 42W 120 MHz 604 POWER GXT150L 1080 MB SCSI-2 None
The IBM P70 monitor has an actual viewable screen size of 15.9 inches when measured diagonally.
Model From To ---- -- 41T 42T 41W 42W
Note: A machine being upgraded must have a minimum of 1 GB of SCSI-2 disks installed or on order.
The Model Conversion Kit includes:
| System planar board with PowerPC 604 CPU |
| Logo |
| Installation instructions |
(R), (TM), * Trademark or registered trademark of International Business Machines Corporation.
** Company, product, or service name may be a trademark or service mark of others.
UNIX is a registered trademark in the United States and other countries licensed exclusively through X/Open Company Limited.
