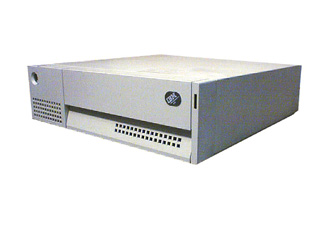

The RS/6000 graphics workstation is a desktop system that is binary compatible with the RS/6000 family. The 7006 workstations support a wide range of graphics configurations enabling you to select the level of graphics performance you need - from entry-level 2D business graphics to advanced 3D technical applications.
The Model 41T graphics workstation has an 80MHz PowerPC 601 microprocessor, 16MB memory (expandable to 256MB), POWER GXT150L graphics adapter, 540MB SCSI-2 disk drive, keyboard, mouse and a P70 Color Monitor. The P70 Color Monitor has a maximum viewable image size of 15.9 inches/403mm measured diagonally. The Ultimedia Audio Adapter with its cost-effective, 16-bit audio capability may also be included at no additional charge if selected at time of workstation order.
The RS/6000 graphics workstation is a desktop system that is binary compatible with the RS/6000 family. The 7006 workstations support a wide range of graphics configurations enabling you to select the level of graphics performance you need - from entry-level 2D business graphics to advanced 3D technical applications.
The Model 41W graphics workstation has an 80MHz PowerPC 601* microprocessor, 16MB memory (expandable to 256MB), POWER GXT150L graphics adapter, 540MB SCSI-2 disk drive, keyboard and mouse. The Model 41W comes without a standard monitor so you have the option of using existing monitors.
The RS/6000 graphics workstation is a desktop system that is binary compatible with the RS/6000 family. The 7006 workstations support a wide range of graphics configurations enabling you to select the level of graphics performance you need - from entry-level 2D business graphics to advanced 3D technical applications.
The Model 42T graphics workstation has a 120MHz PowerPC 604 microprocessor, 16MB memory (expandable to 256MB), POWER GXT150L* graphics adapter, 1080MB SCSI-2 disk drive, keyboard, mouse and a P70 Color Monitor. The P70 Color Monitor has a maximum viewable image size of 15.9 inches/403mm measured diagonally. The Ultimedia* Audio Adapter with its cost-effective, 16-bit audio capability may also be included at no additional charge if selected at time of workstation order.
Effective April 18, 1997, this RS/6000 system will have a 1-2 user, full function AIX Version 4 package included at no additional charge.
The RS/6000 graphics workstation is a desktop system that is binary compatible with the RS/6000 family. The 7006 workstations support a wide range of graphics configurations enabling you to select the level of graphics performance you need - from entry-level 2D business graphics to advanced 3D technical applications.
The Model 42W graphics workstation has a 120MHz PowerPC 604* microprocessor, 16MB memory (expandable to 256MB), POWER GXT150L* graphics adapter, 1080MB SCSI-2 disk drive, keyboard and mouse. The Model 42W comes without a standard monitor so you have the option of using existing monitors.
Effective April 18, 1997, this RS/6000 system will have a 1-2 user, full function AIX Version 4 package included at no additional charge.
Model CPU Graphics Adapter Disk Drive Monitor ----- ----------- ---------------- --------------- --------------- 41T 80 MHz 601 POWER GXT150L 540 MB SCSI-2 P70 Color Monitor 41W 80 MHz 601 POWER GXT150L 540 MB SCSI-2 None 42T 120 MHz 604 POWER GXT150L 1080 MB SCSI-2 P70 Color Monitor 42W 120 MHz 604 POWER GXT150L 1080 MB SCSI-2 NoneThe IBM P70 monitor has an actual viewable screen size of 15.9 inches when measured diagonally.
Model From To ---- -- 41T 42T 41W 42WNote: A machine being upgraded must have a minimum of 1 GB of SCSI-2 disks installed or on order.
The Model Conversion Kit includes:
** Company, product, or service name may be a trademark or service mark of others.
UNIX is a registered trademark in the United States and other countries licensed exclusively through X/Open Company Limited.
